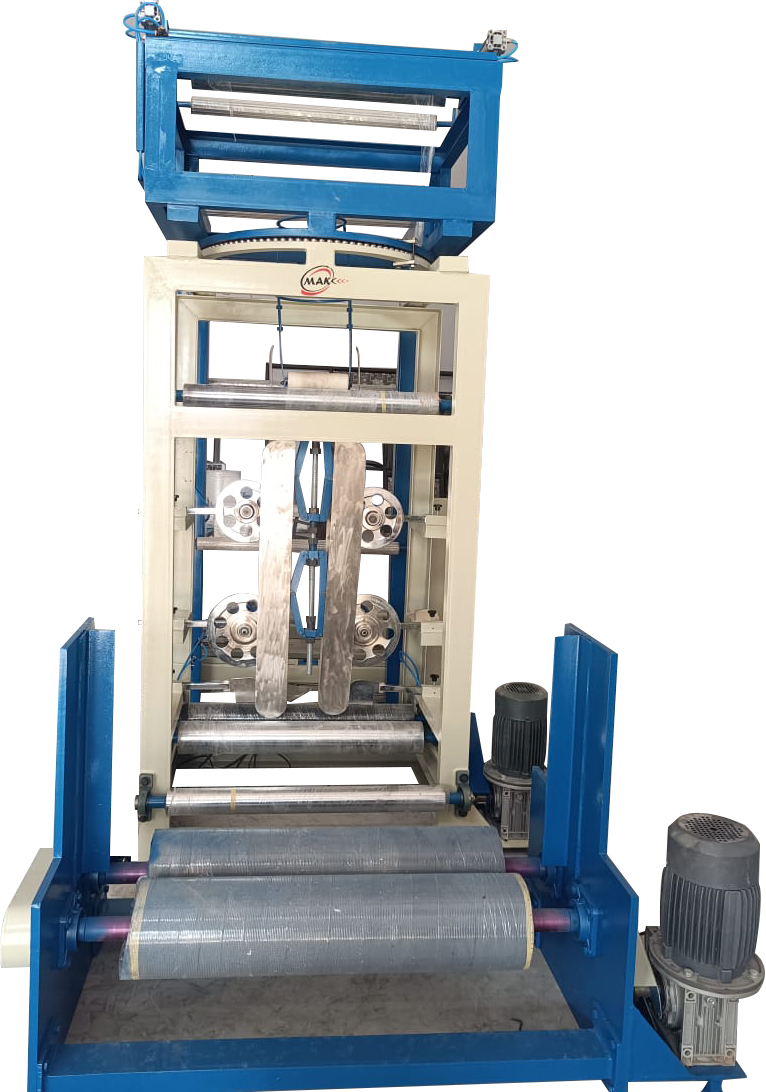

| MACHINE | TWIST GADGET MACHINE |
| MODEL | MAK/TG/750 |
| WORKING WIDTH | 30 INCH |
| WORKING SPEED | 20 MTRs/MINs TO 30 MTRs / MINs |
| UN-WINDER | SELF ROLL LOADING THROUGH PNEUMATIC CYLINDERS |
| MOVING TROLLY ON LEANIER BEARING FOR SMOOTH MOVEMENT | |
| MECHANICAL CHUCK FOR ROLL HOLDING, PNEUMO-HYDRAULIC WEB GUIDE FOR EDGE GUIDING AND MECHANICAL BREAK FOR TENSION CONTROL | |
| GUSSETING DEVICE | STRONG GUIDE ROLLS FOR GUSSET FRAME HOLDING, TWO
STATIONS FOR GUSSET SETTING WITH ALUMINIUM DISK AND ONE
STATION WITH ALUMINIUM FLAP. DISK AND PATRA CAN BE ADJUSTED FORWARD AND REVERSE WITH RATCHET-PINION SYSTEM |
| NIP STATION WITH ONE RUBBER ROLL AND ONE STEEL ROLL. NIP CAN BE ADJUSTED WITH PNEUMATIC CYLINDERS. | |
| TWIST GUSSET FRAME | UNWIND UNIT IS ATTACHED WITH WHEELS WHICH CAN TWIST WHEN MAIN FRAME OF TWIST GUSSET WILL CHANGE ITS POSITION. TWIST GUSSET FRAME IS BASED ON 28 INCH BEARING FRAME. |
| RE-WINDER | TWO ROLL REWINDING SYSTEM. 30 INCH IS THE WORKING WIDTH OF THE REWINDER UNIT. 5 HP AC GEARED MOTOR WITH 5 HP AC DRIVE WILL CONTROL THE WINDING SPEED AND WINDING TENSION. |
| STRUCTURE | TOTAL MACHINE IS MADE BY MS BOX PIPE / MS CHANEL AND MS PLATES. |
| PANEL AND CONTROL | ELECTRICAL PANEL WITH HMI AND PLC IS EQUIPPED WITH 3 & 5 HP AC DRIVE AND ITS CONTROL. METER/MIN AND METER COUNTER IS INBULT IN SPEED DISPLAY UNIT. ALL PNUMATIC LEVER FOR NIP AND ROLL LOADING UNLOADING. |
