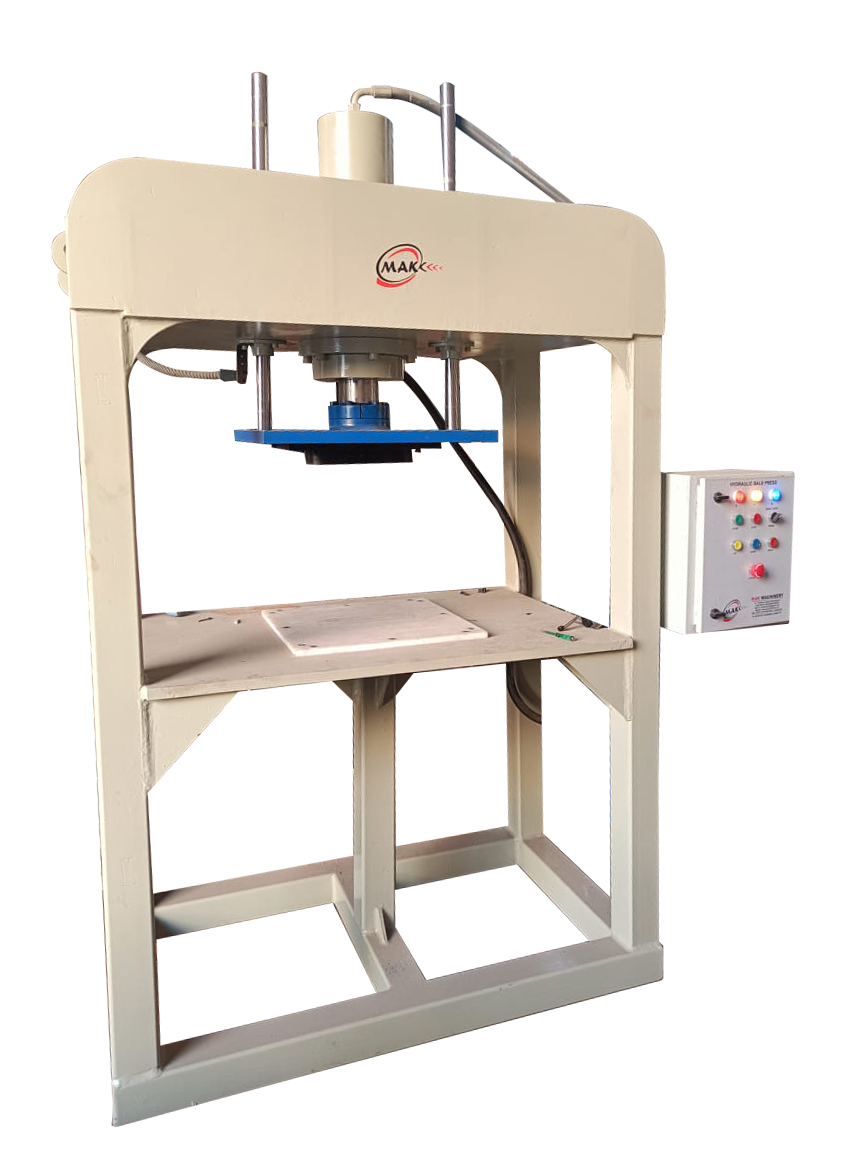

TECHNICAL SPECIFICATION OF BUFFAL PUNCHING MACHINE
| Capacity (Ton.) | 30 TON |
| Platen Size (mm) | 1200 X 800 |
| Pressure (Kg/Cm2) | 100 BAR |
| Base height (mm) | 800 |
| Electric Motor (HP) | 7.5 HP |
| Stroke (mm) | 400 |
| Oil Required - Min. (liter) | 100 |
| No. Of Guide | 2 |
| Punching Die (mm) | 100 x 300 |
| Operation | Manual / Push Button |
| Hydraulic Pump | Gear |
| Pump Capacity | 40 LPM |
| Over All Dimension (L X B X H) mm |
1300 x 800 x 1800 |
